Motorized Sliding

Motorized sliding

MOTOROLL

Motorized 100% Aluminium tambour door system supplied in pre-assembled kit , remote controlled opening .

Available in a wide range of dimensions and accessories

MOTOROLL

MOTOROLL

Motorized 100% Aluminium tambour door system supplied in pre-assembled kit , remote controlled opening .

Available in a wide range of dimensions and accessories.

discover motoroll

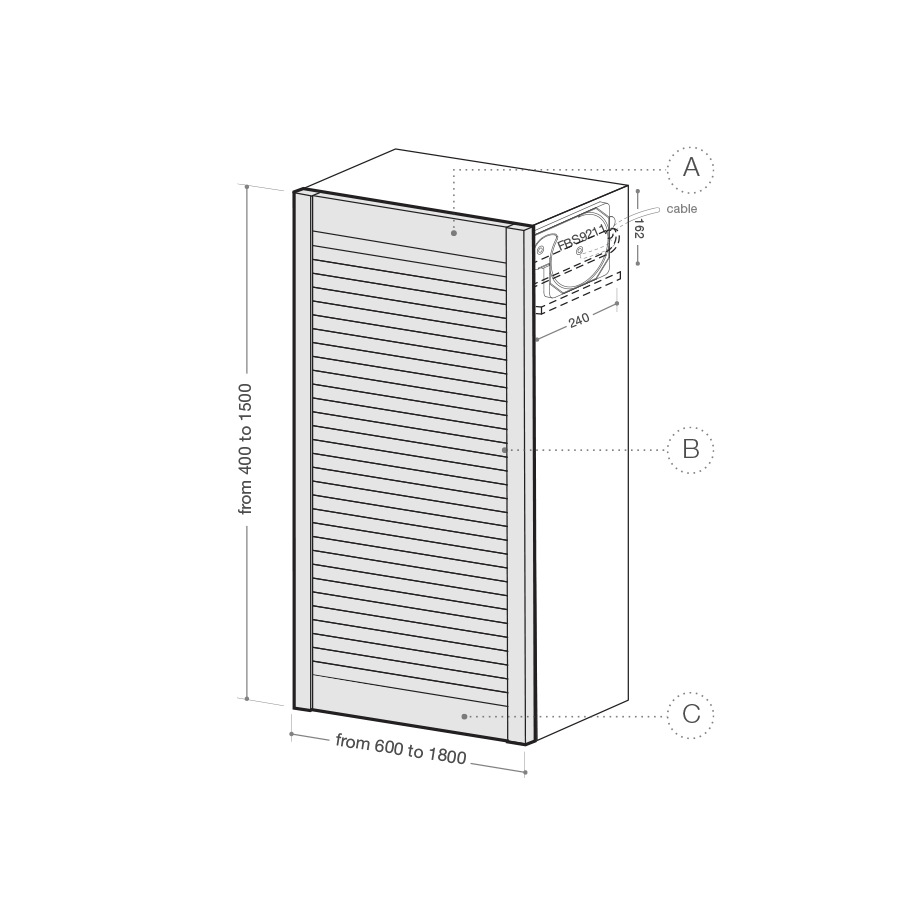

MR1  Motoroll 9211

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 240 x 162 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 + FBS7553 (top support)
Profile B FBS7558 + FBS7555 (18-19 mm) / FBS7551 + FBS7555 (16 mm)
Profile C FBS7512

Assembly instructions video

Request more info

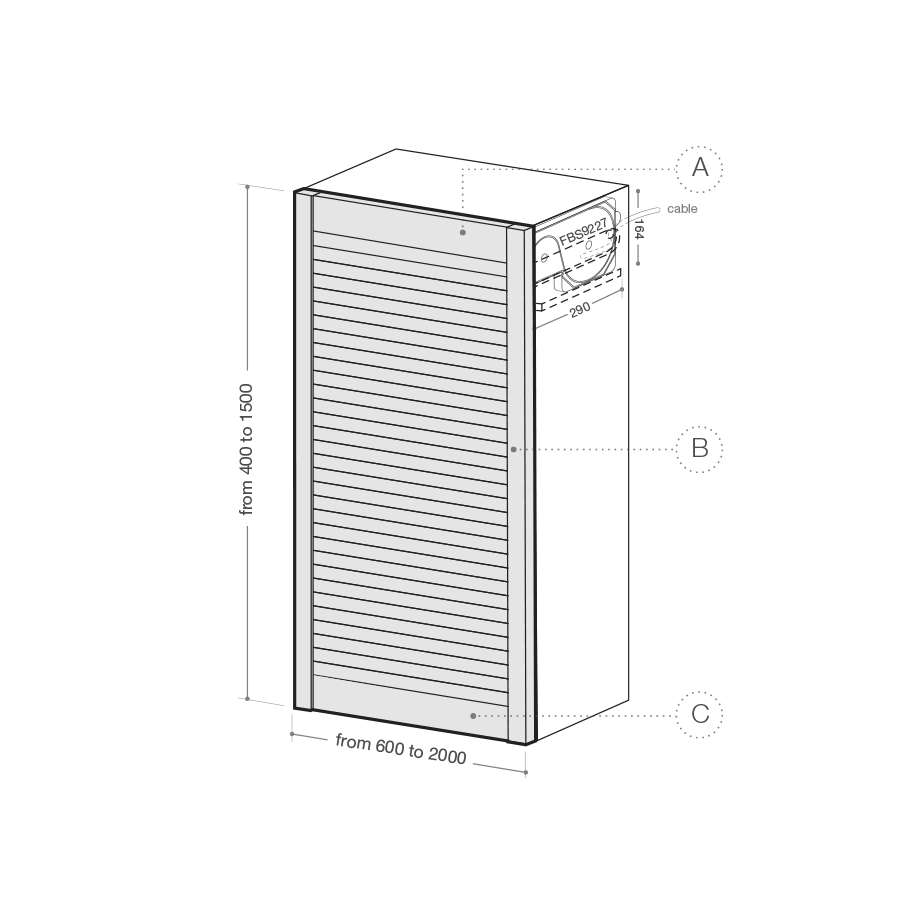

MR2  Motoroll 9227

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 290 x 164 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 + FBS7553 (top support)
Profile B FBS7558 + FBS7555 (18 - 19 mm) / FBS7551 + FBS7555 (16 mm)
Profile C FBS7512

Assembly instructions video

Request more info

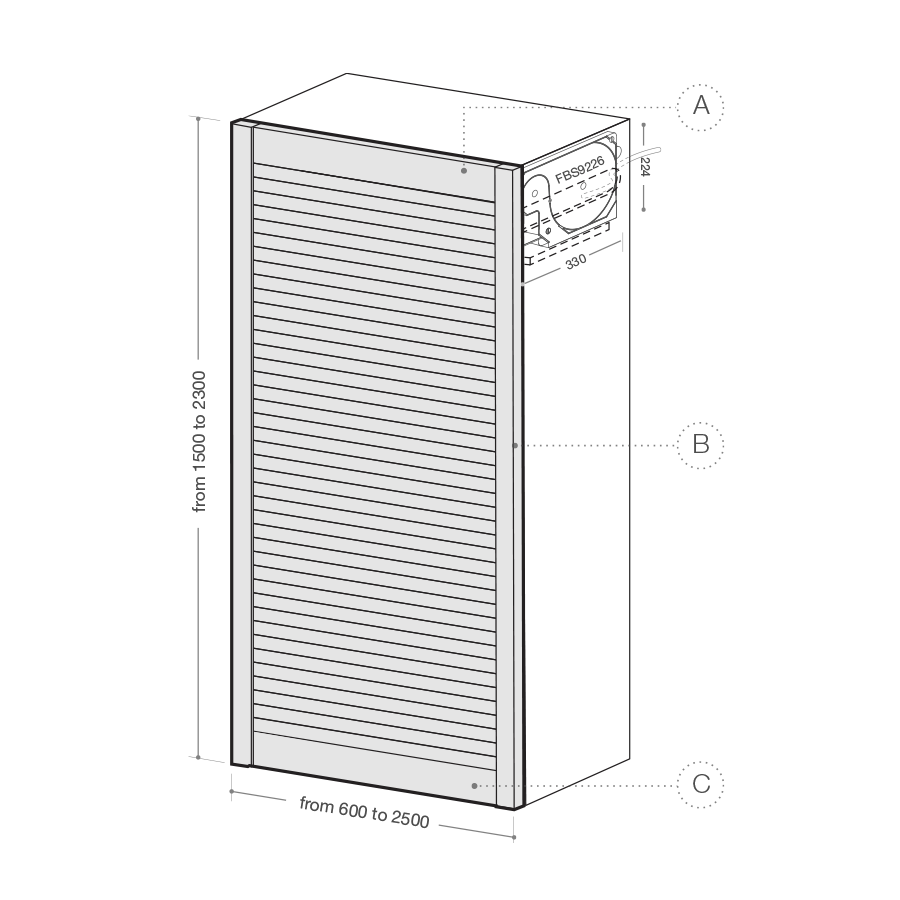

MR3  Motoroll 9226

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 330 x 224 mm
SHELVES SETBACK 50 mm
MAXIMUM AREA HxW 4 mq

PROFILES CODES

Profile A FBS7518 + FBS7553 (top support)
Profile B FBS7558 + FBS7555 (18 - 19 mm) / FBS7551 + FBS7555 (16 mm)
Profile C FBS7512

Assembly instruction video

Request more info

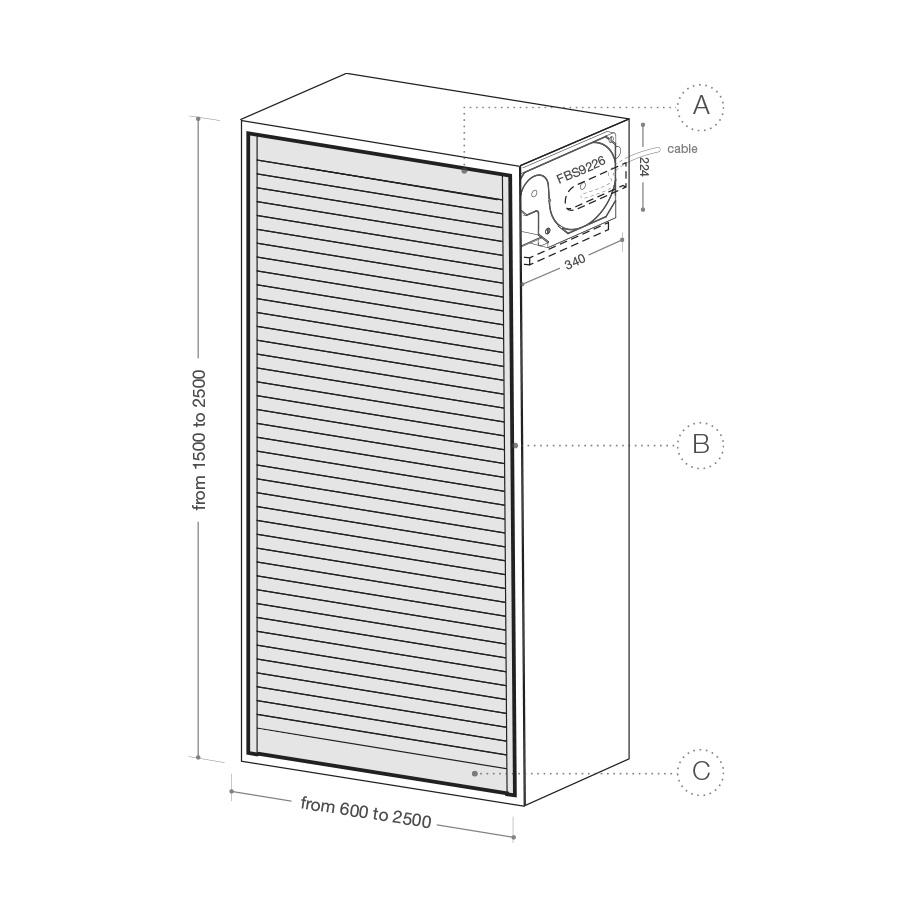

MR4  Motoroll 9226 Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 340 x 224 mm
SHELVES SETBACK 50 mm
MAXIMUM AREA H x W 4 sqm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547

Request more info

JOLLYSYSTEM MOTOROLL

100% Aluminium or Tempered Glass tambour door system supplied in pre-assembled kit. Suitable for hanging cabinets.

Also available in the manual option.

JOLLY SYSTEM MOTOROLL

JOLLY SYSTEM MOTOROLL

100% Aluminium or Tempered Glass tambour door system supplied in pre-assembled kit. Suitable for hanging cabinets.

Also available in the manual option.

discover jollysystem motoroll

JS3  JollySystem Motoroll Minimal

CABINET TICKNESS any
INTERNAL COILER DIMENSION 305 x 122 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547

Request more info

JS4  JollySystem MotorGlass Minimal

CABINET TICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 305 x 122 mm
SHELVES SETBACK 50 mm
AVAILABLE WIDTHS 600 / 900 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2062 (side fascia)
Profile C FBS7547

Request more info

MOTORGLASS

Motorized tempered glass tambour door system supplied in pre-assemled kit with remote controlled opening.

MOTORGLASS

MOTORGLASS

Motorized tempered glass tambour door system supplied in pre-assemled kit with remote controlled opening.
discover MotorGlass

GM3  MotorGlass 9226

CABINET TICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 330 x 224 mm
SHELVES SETBACK 50 mm
AVAILABLE WIDTHS 600 - 900 mm

PROFILES CODES

Profile A FBS7518 + FBS7553 (top support)
Profile B FBS7558 + FBS7555 (18-19 mm) / FBS7551 + FBS7555 (16 mm)
Profile C FBS7512

Request more info

GM4  MotorGlass 9226 Minimal

CABINET TICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 340 x 224 mm
SHELVES SETBACK 50 mm
AVAILABLE WIDTHS 600 / 900 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2062 (side fascia)
Profile C FBS7512

Request more info
