Horizontal Sliding

Horizontal sliding tambour doors

HORIZONTAL

100% Aluminium Tambour Door System with horizontal sliding supplied in pre-assembled kit .

Available in a wide range of dimensions and accessories

HORIZONTAL

HORIZONTAL

100% Aluminium Tambour Door System with horizontal sliding supplied in pre-assembled kit .

Available in a wide range of dimenzions and accessories.

discover horizontal

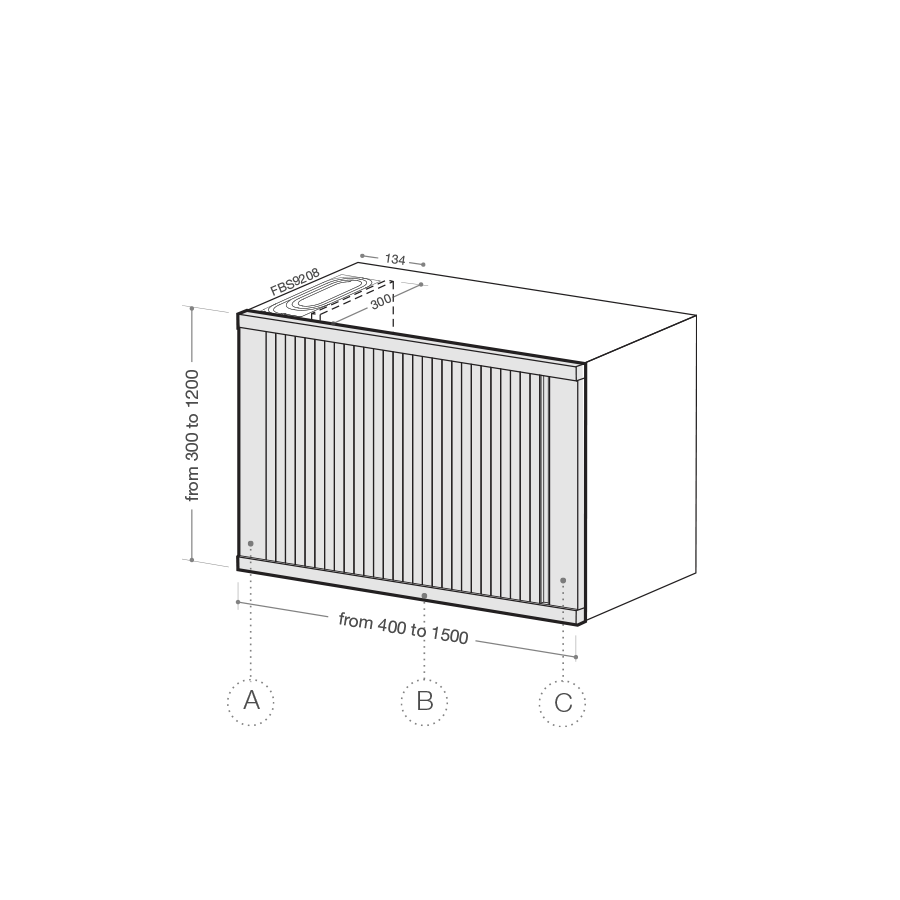

HR1  BoxMilano Horizontal

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 300 x 134 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 (18-19 mm) / FBS7515 (16 mm)
Profile B FBS7519 (18-19 mm) / FBS7516 (16 mm)
Profile C FBS7512 + FBS2010 (handle)

Request more info

HR2  BoxMilano Horizontal Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 300 x 134 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Request more info

HR3  BoxMilano Horizontal Twins

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 430 x 134 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 (18-19 mm) / FBS7515 (16 mm)
Profile B FBS7519 (18 - 19 mm) / FBS7516 (16 mm)
Profile C FBS7512 + FBS2010 (handle)

Request more info

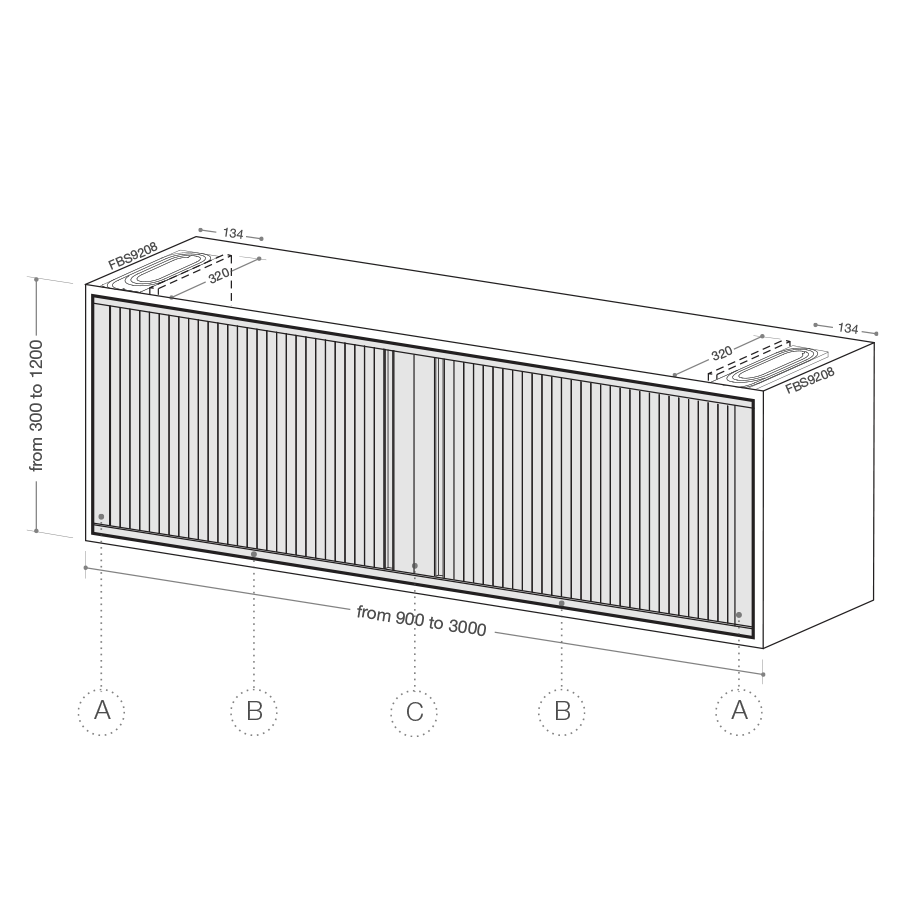

HR4  BoxMilano Horizontal Twins Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 320 x 134 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Richiedi info

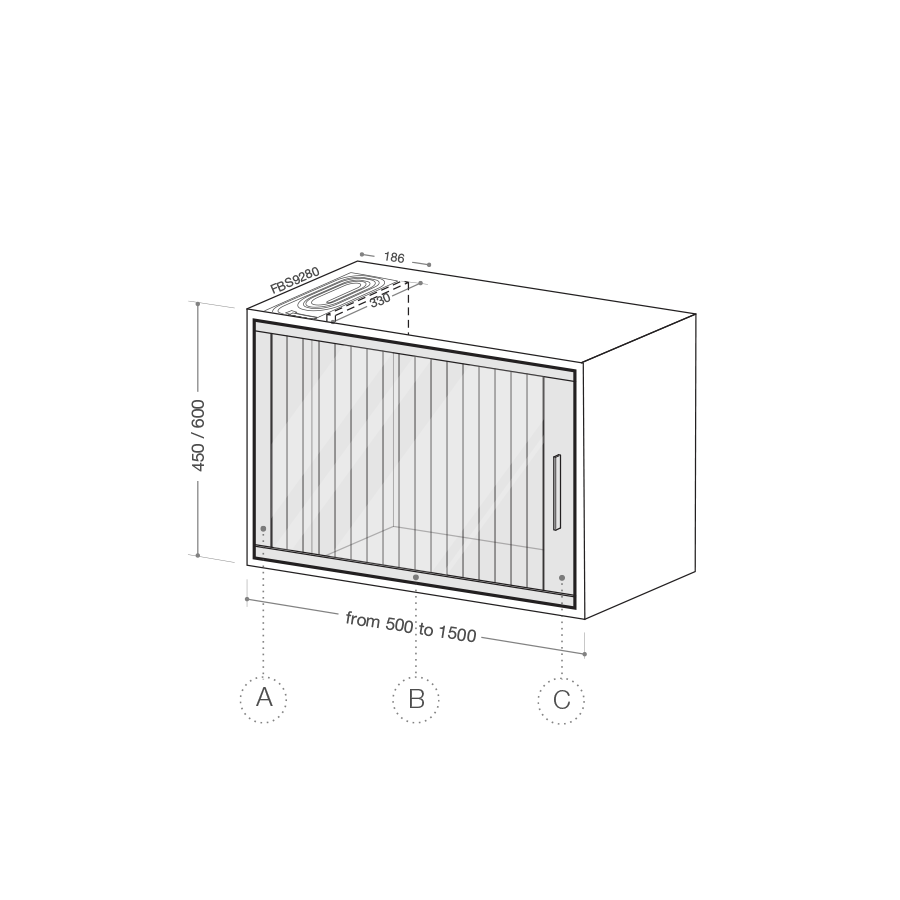

HR5  GlassMilano Horizontal Minimal

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 320 x 186 mm
SHELVES SETBACK 50 mm
AVAILABLE HEIGHTS 450 / 600 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2062 (side fascia)
Profile C FBS7547 + FBS2010 (handle) / FBS7512 + FBS7591 (handle)

Request more info
