Vertical Sliding

Vertical sliding

BOX MILANO

Our best-seller is the only Made in Italy cassette system , custom-manufactured according to the client’s specifications

and supplied in pre-assembled kits with pre-charged weight-compensator .

The assembling procedure is simple & fast with step-by-step instructions .

In 2012 BOXMILANO was awarded the CATAS CERTIFICATE for n. 20.000 openings and closures

BOX MILANO

BOX MILANO

Our best-seller is the only Made in Italy cassette system , custom-manufactured according to the client’s specifications and supplied in pre-assembled kits with pre-charged weight-compensator .

The assembling procedure is simple & fast with step-by-step instructions .

In 2012 BOXMILANO was awarded the CATAS CERTIFICATE for n. 20.000 openings and closures

discover boxmilano

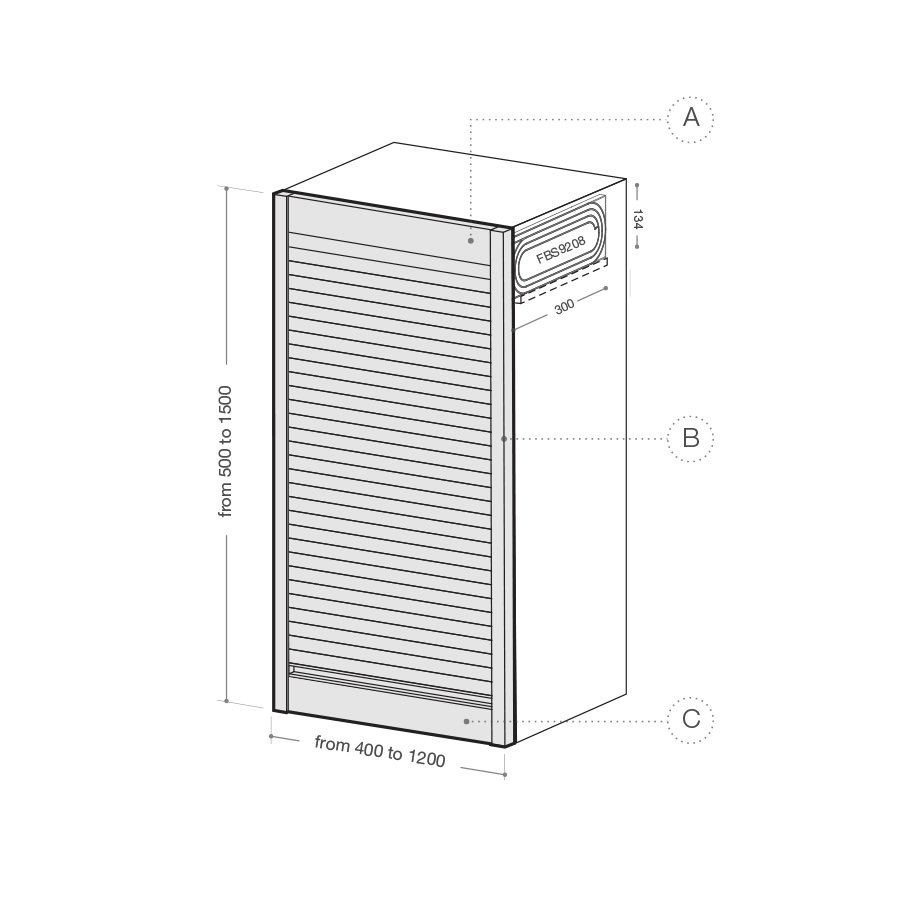

BM1  BoxMilano Standard

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 300 x 134
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 (18-19 mm) / FBS7515 (16 mm)
Profile B FBS7519 (18-19 mm) / FBS7516 (16 mm)
Profile C FBS7512 + FBS2010 (handle)

Assembly Instructions

Request more info

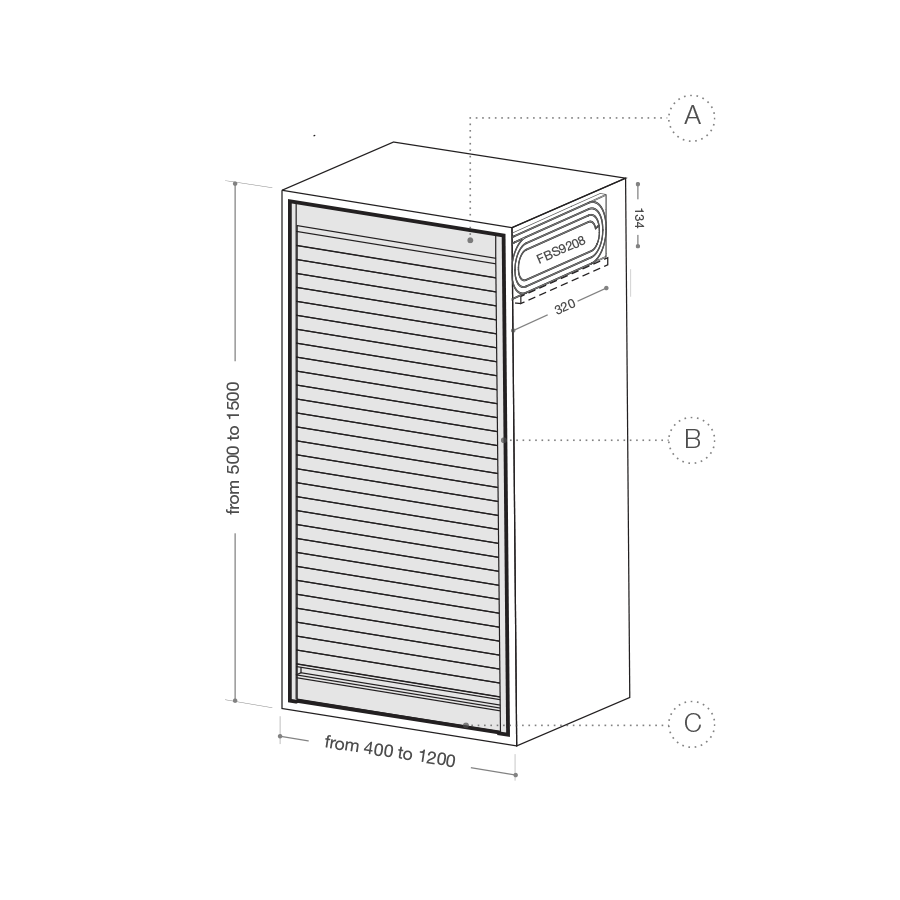

BM2  BoxMilano Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 300 x 134
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Assembly instructions video

Request more info

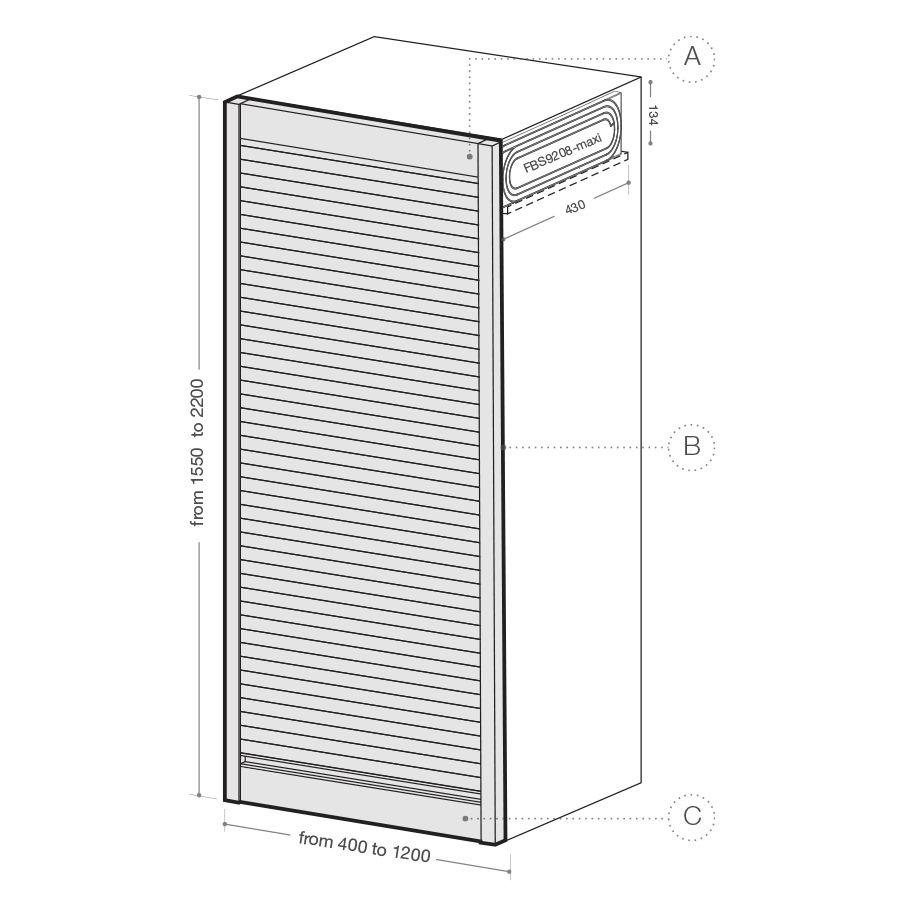

BM3  Maxi BoxMilano

CABINET TICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 430 x 134 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 (18-19 mm) / FBS7515 (16 mm)
Profile B FBS7519 (18 - 19 mm) / FBS7516 (16 mm)
Profile C FBS7512 + FBS2010 (handle)

Request more info

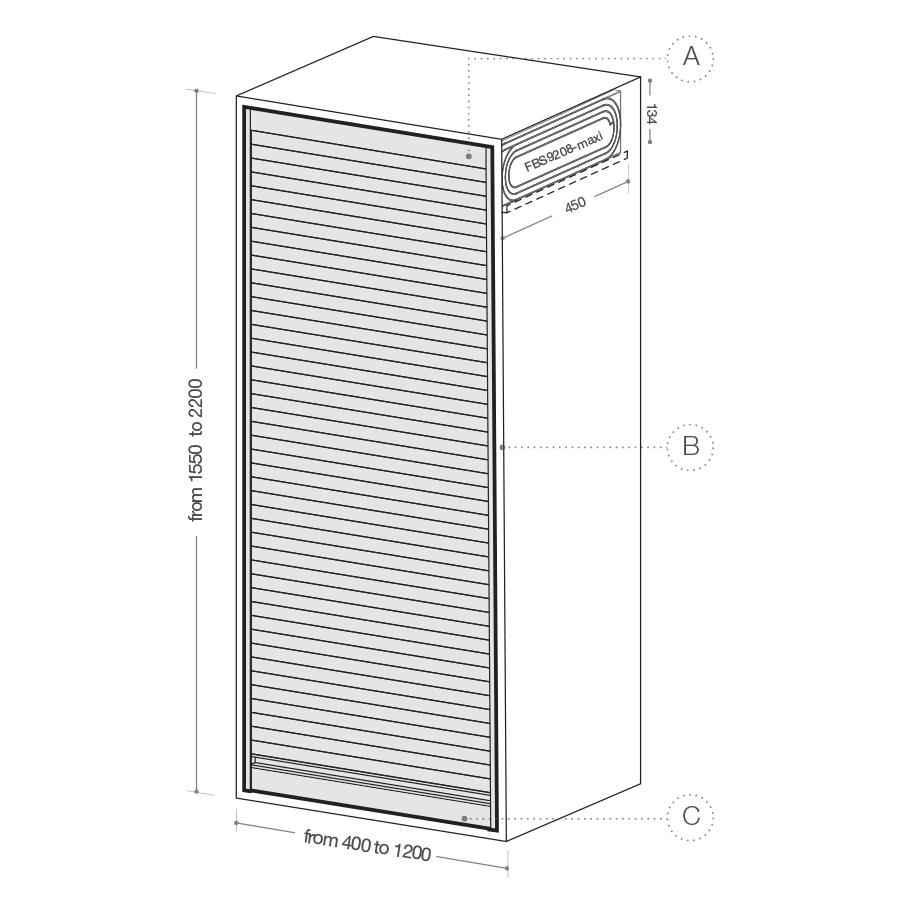

BM4  Maxi BoxMilano Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 450 x 134 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Request more info

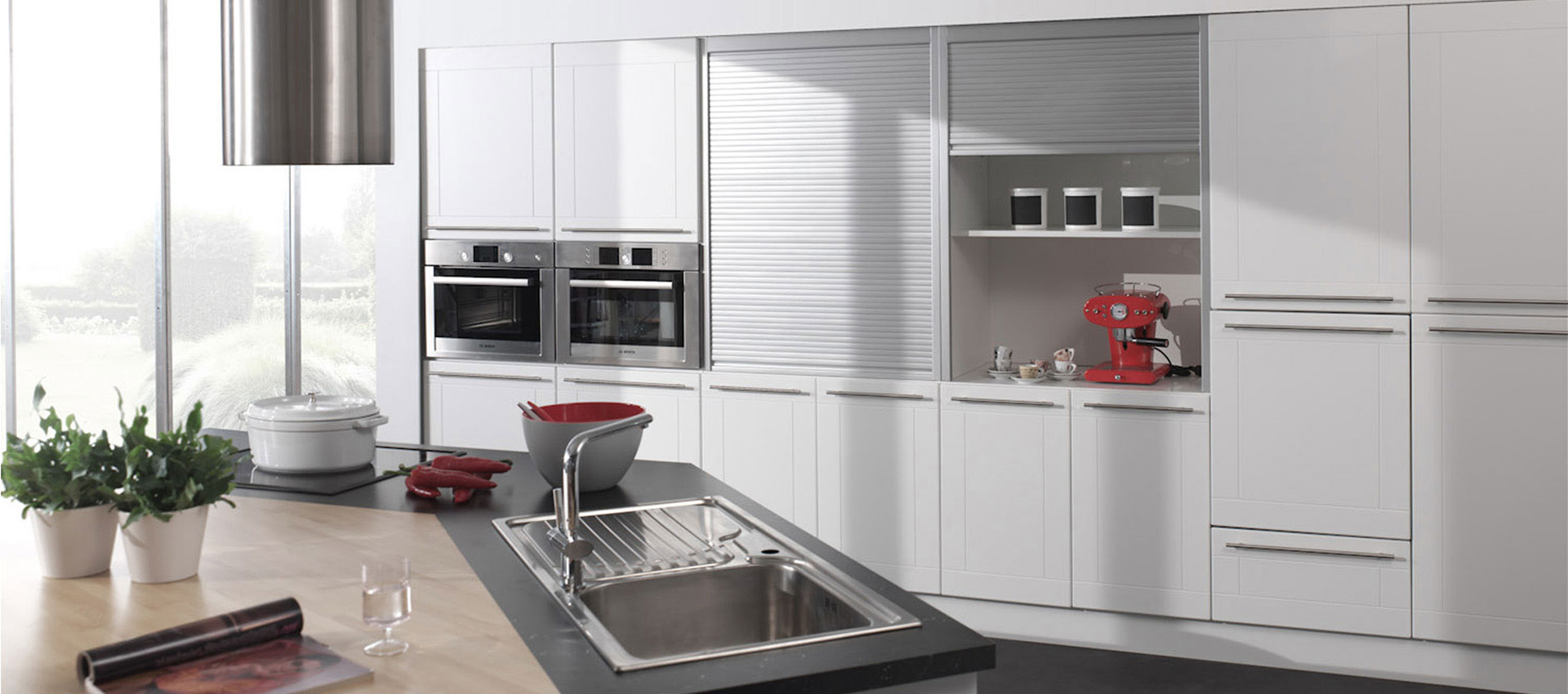

TOP SYSTEM

100% Aluminium tambour door system supplied in kit with box and spring coiler .

Available in a wide range of dimensions and accessories .

TOP SYSTEM

TOP SYSTEM

100% Aluminium tambour door system supplied in kit with box and spring coiler .

Available in a wide range of dimensions and accessories .

discover topsystem

TS1  TopSystem 9211

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 240 x 162 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS2008 + FBS2029 (support)
Profile B sliding guide: FBS2014 + FBS6501 (16 mm) side fascia: FBS2030 + FBS2028 (support)
Profile C FBS2014 + FBS2031 (L-shaped profile) - with lock: FBS2010 + FBS7547 + FBS2031

Request more info

TS2  TopSystem 9227

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 290 x 164 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7518 + FBS7553 (top support)
Profile B FBS7558 + FBS7555 (18 - 19 mm) / FBS7551 + FBS7555 (16 mm)
Profile C FBS7512 + FBS2010 (handle)

Request more info

TS3  TopSystem 9226

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 330 x 224 mm
SHELVES SETBACK 50 mm
MAXIMUM AREA HxW 2,7 sqm

CODICI PROFILI

Profilo A FBS7518 + FBS7553 (top support )
Profile B FBS7558 + FBS7555 (18 - 19 mm) / FBS7551 + FBS 7555 (16 mm)
Profile C FBS7512 + FBS2010 (handle)

Request more info

TS4  TopSystem 9226 Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 340 x 224 mm
SHELVES SETBACK 50 mm
MAXIMUM AREA HxW 2,7 sqm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Request more info

SPECIALSYSTEM

100% Aluminium tambour door system supplied in kit with reduced mechanism dimensions .

Available in a wide range of dimensions and accessories .

SPECIAL SYSTEM

SPECIAL SYSTEM

100% Aluminium tambour door system supplied in kit with reduced mechanism dimensions .

Available in a wide range of dimensions and accessories .

discover specialsystem

SP1  SpecialSystem 9199 Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 370 x 86 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B sliding guide: FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Request info

SP2  SpecialSystem 9200 Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 70 x 70 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Assembly instructions video

Request more info

SP3  SpecialSystem 9207 Minimal

CABINET TICKNESS any
INTERNAL COILER DIMENSION 95 x 95 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Assembly instructions video

Request info

GLASSMILANO

Tempered glass tambour door system supplied in pre-assemled kit with pre-charged weight compensator.

GLASS MILANO

GLASS MILANO

Tempered glass tambour door system supplied in pre-assemled kit with pre-charged weight compensator.
discover GlassMilano

GM1  GlassMilano

CABINET TICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 302 x 186 mm
SHELVES SETBACK 50 mm
AVAILABLE WIDTHS 450 - 600 - 900 mm

PROFILES CODE

Profile A FBS7518 (18-19 mm) / FBS7515 (16 mm)
Profile B FBS7558 + FBS7555 (18-19 mm) / FBS7551 + FBS7555 (16 mm)
Profile C FBS7547 + FBS2010 (handle) / FBS7512 + FBS7591

Assembly instructions video

Request more info

GM2  GlassMilano Minimal

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 330 x 186 mm
SHELVES SETBACK 50 mm
AVAILABLE WIDTHS 450 - 600 - 900 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2062 (side fascia)
Profile C FBS7547 + FBS2010 (handle) / FBS7512 + FBS7591 (handle)

Request more info

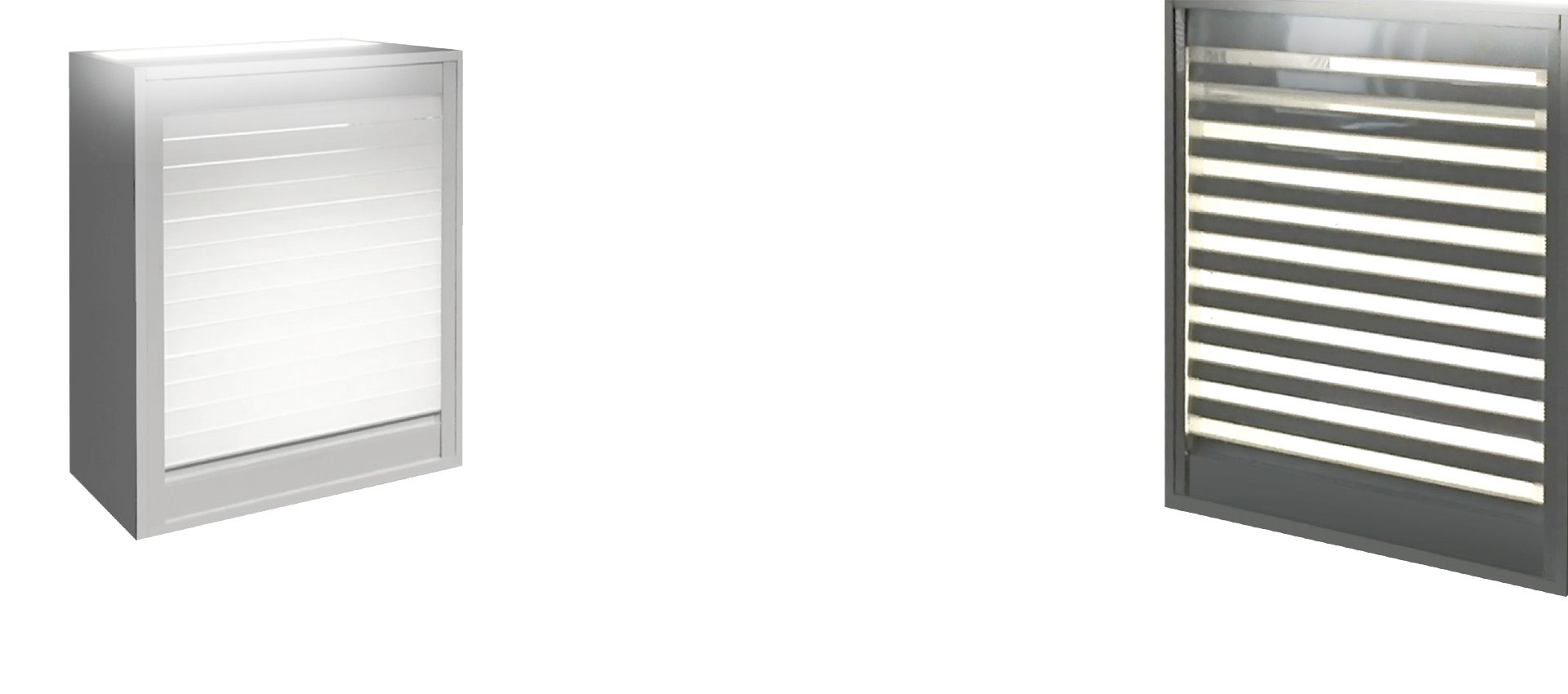

JOLLYSYSTEM

100% Aluminium or Tempered Glass tambour door system supplied in kpre-assembled kit . suitable for hnaging abinets.

Available in both manual or motorized options

JOLLY SYSTEM

JOLLY SYSTEM

100% Aluminium or Tempered Glass tambour door system supplied in kpre-assembled kit . suitable for hanging cabinets.

Available in both manual or motorized options.

discover JollySystem

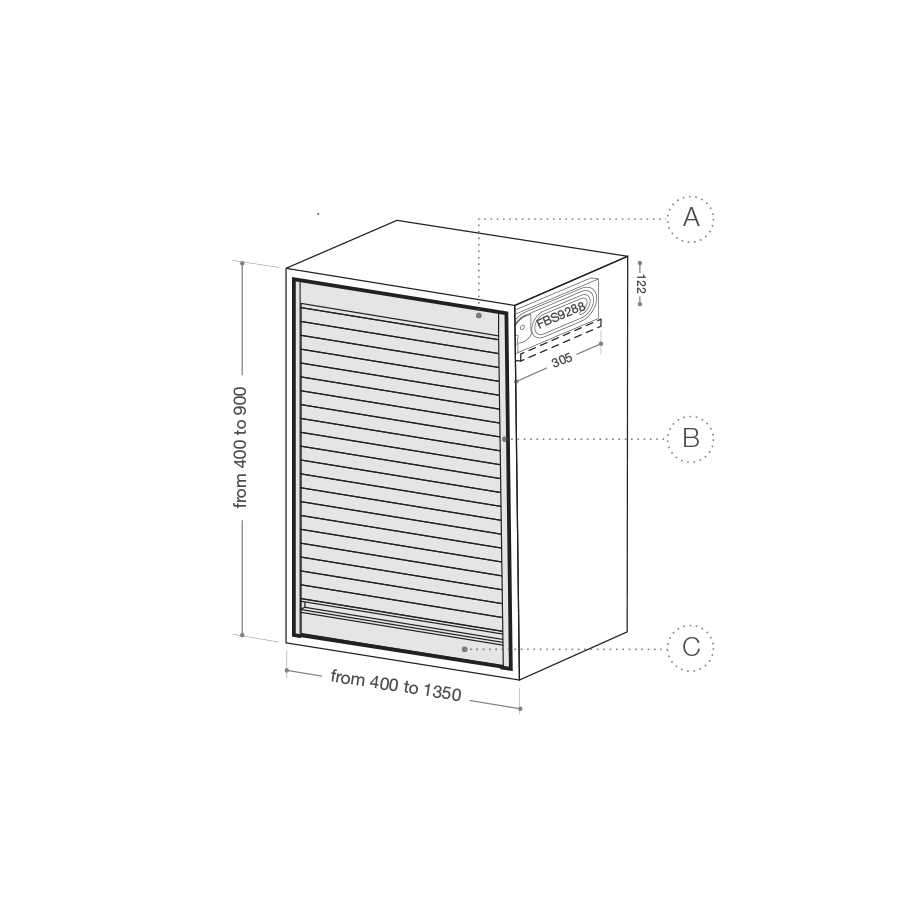

JS1  JollySystem Alu Minimal

CABINET THICKNESS any
INTERNAL COILER DIMENSION 305 x 122 mm
SHELVES SETBACK 50 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2063 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Request more info

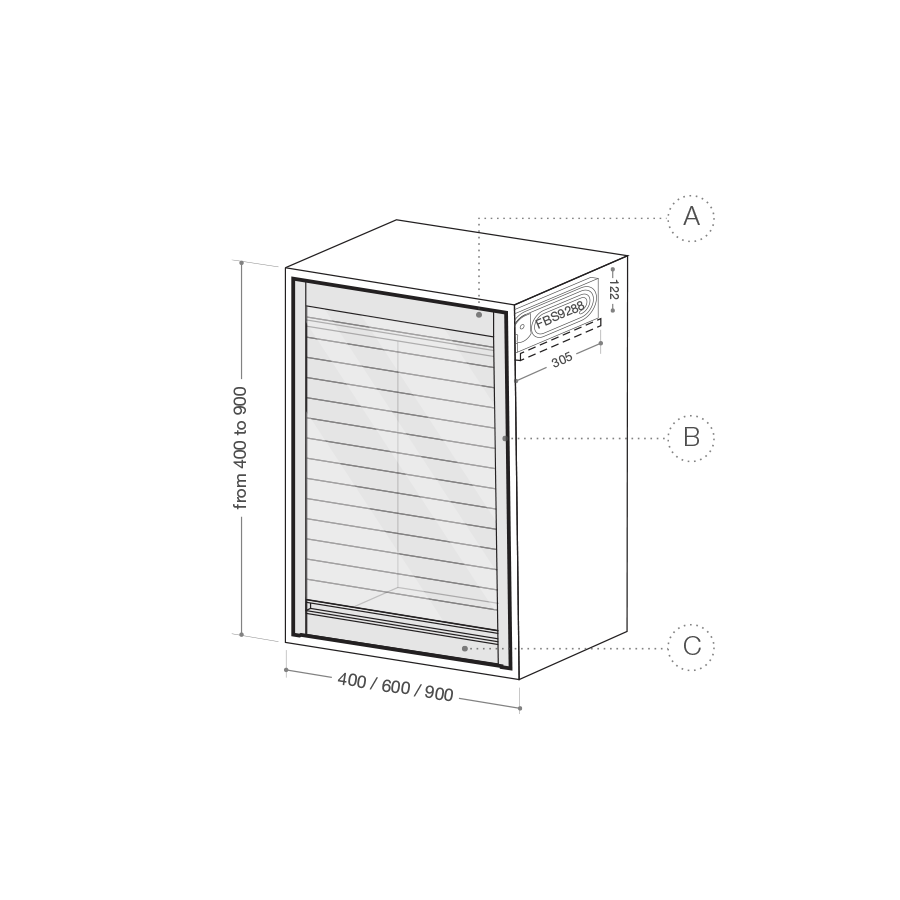

Js2  JollySystem Glass Minimal

CABINET THICKNESS 16 / 18 / 19 mm
INTERNAL COILER DIMENSION 305 x 122 mm
SHELVES SETBACK 50 mm
AVAILABLE WIDTHS 450 - 600 - 900 mm

PROFILES CODES

Profile A FBS7556
Profile B FBS7554 + FBS2062 (side fascia)
Profile C FBS7547 + FBS2010 (handle)

Request more info
